Toshiba XR-9318 is a Philips CD player (made by Philips in Belgium), with design very close to Philips CD 380 (with only one diference: CD380 has digital filter SAA 7220P)





Display and commands

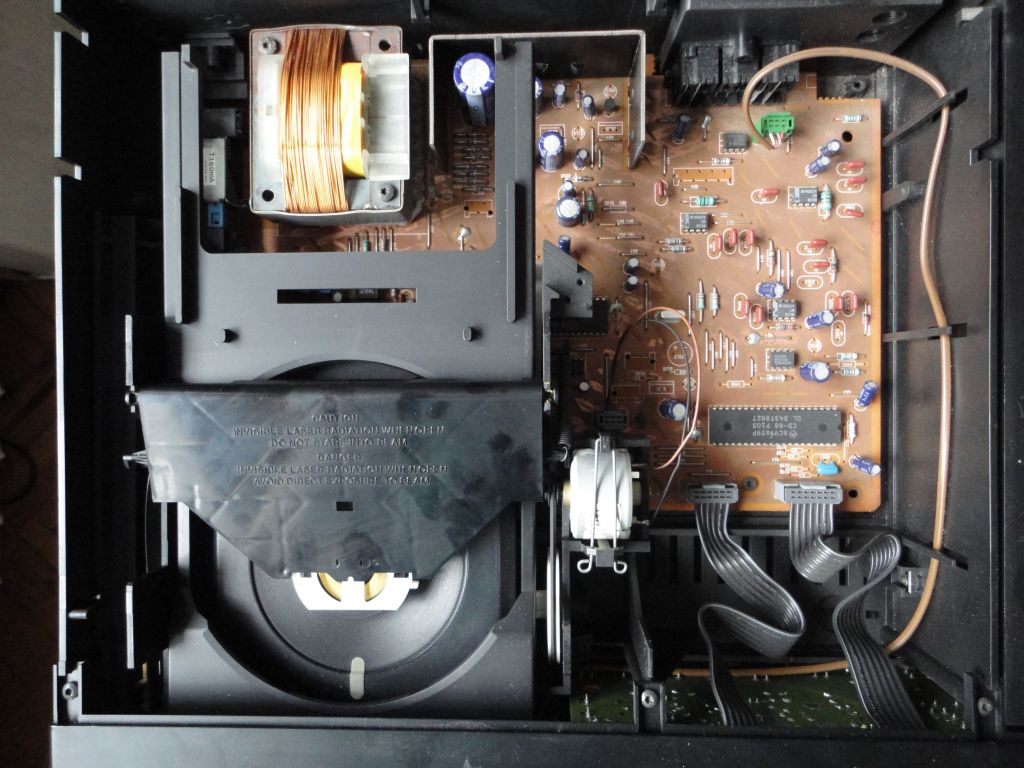

Inside

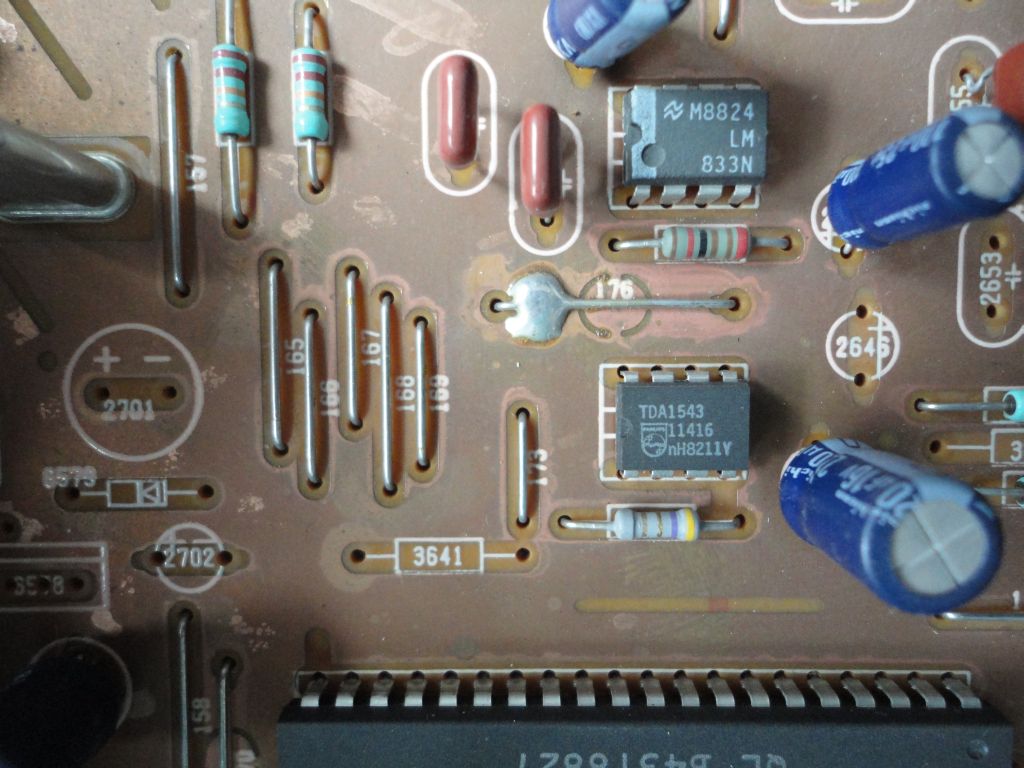

 DAC inside is TDA1543,  procesor Motorola XC99659P (CD-88 P105) , OpAmp is LM833

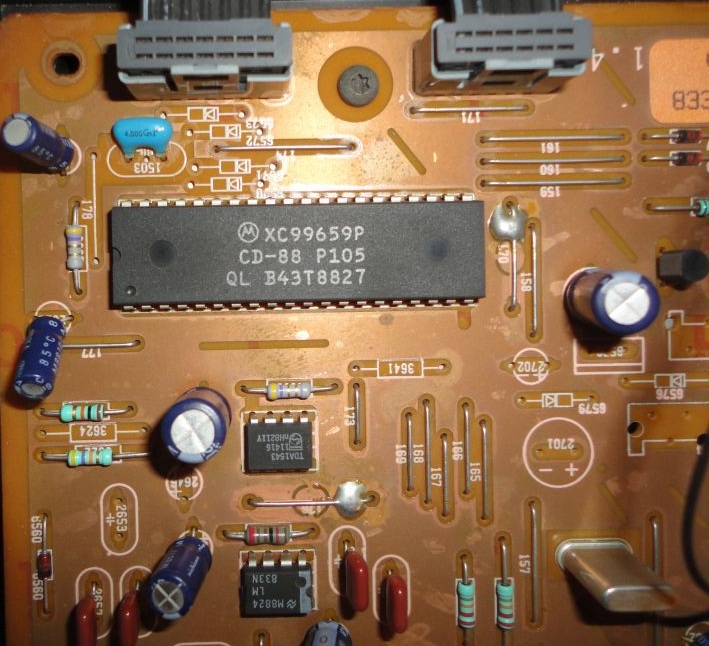

 Motorola XC99659P

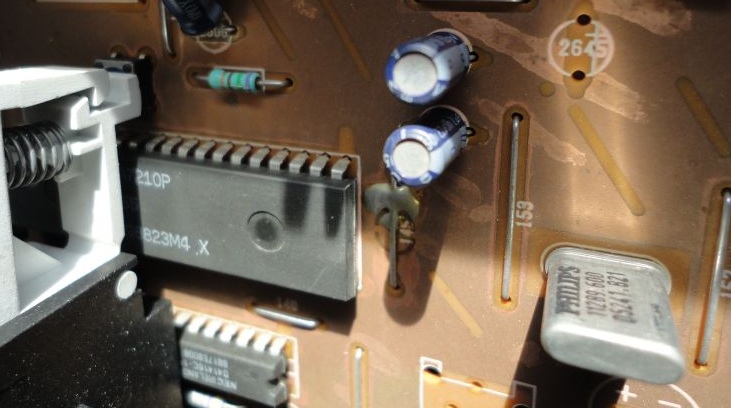

SAA7210P Decoder inside XR-9318, there is no dedicated Digital Filter (SAA7220), so there is NO Oversampling!

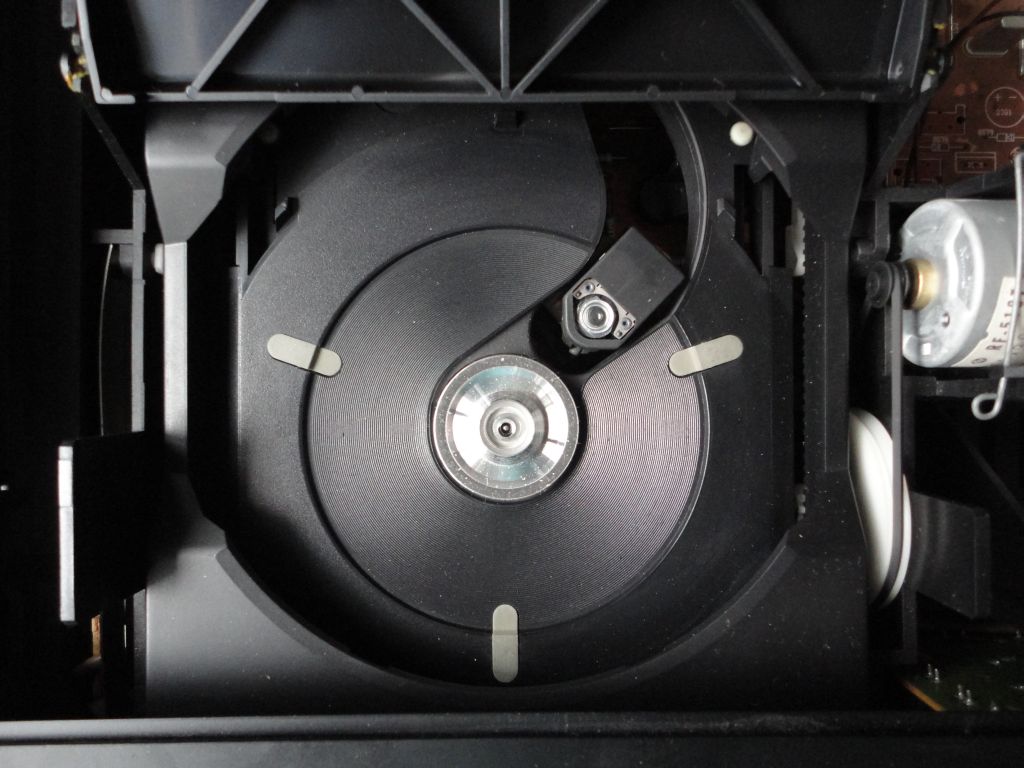

CDM 4/19 inside the XR-9318

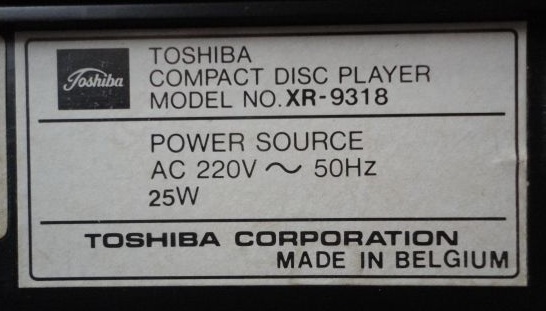

                                                                      Outputs                                                                                       Back label

Back side
