3D Blu-Ray Disc Player Pioneer BDP-150-K



BDP-150 Inside

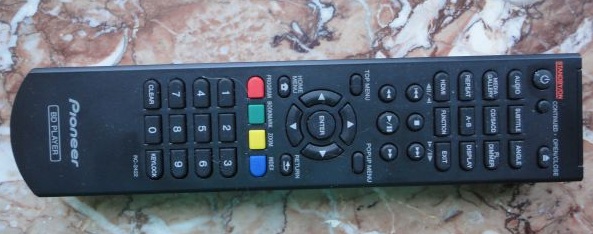

One USB input on front side (second is on the rear side) with only 3 commands. All commands are on remote controler RC-2422

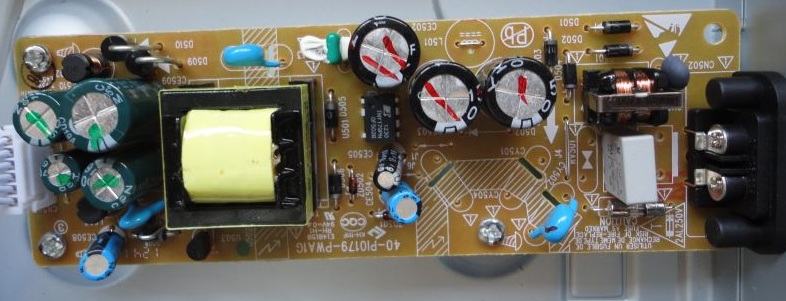

BDP-150 PS board



BDP-150 main board. DAC is AK4430 (AsahiKASEI) 192KHz 24-Bit Stereo DS in 16 pin TSSOP

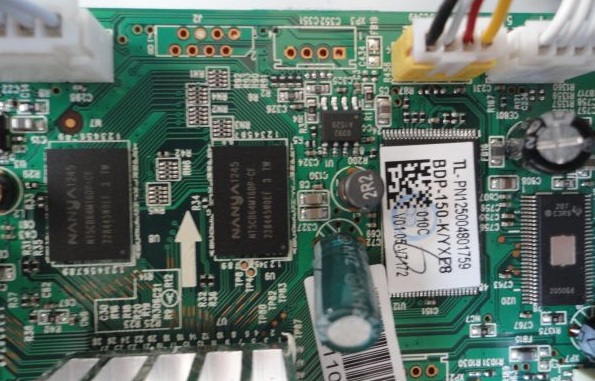

Zoom inside the mini-main board

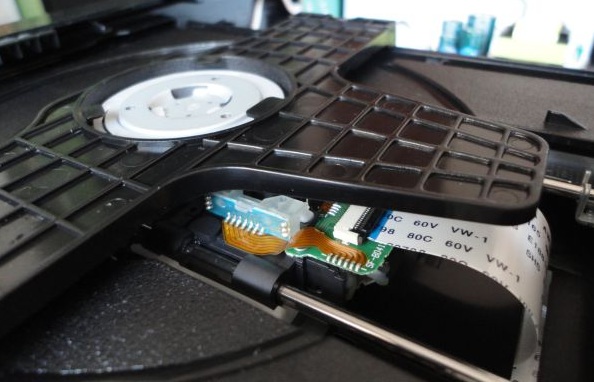

look at the laser pickup

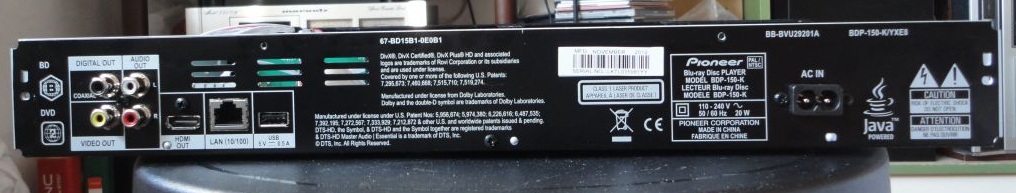

BDP-150 Rear side



Iputs/Outputs on the rear side
