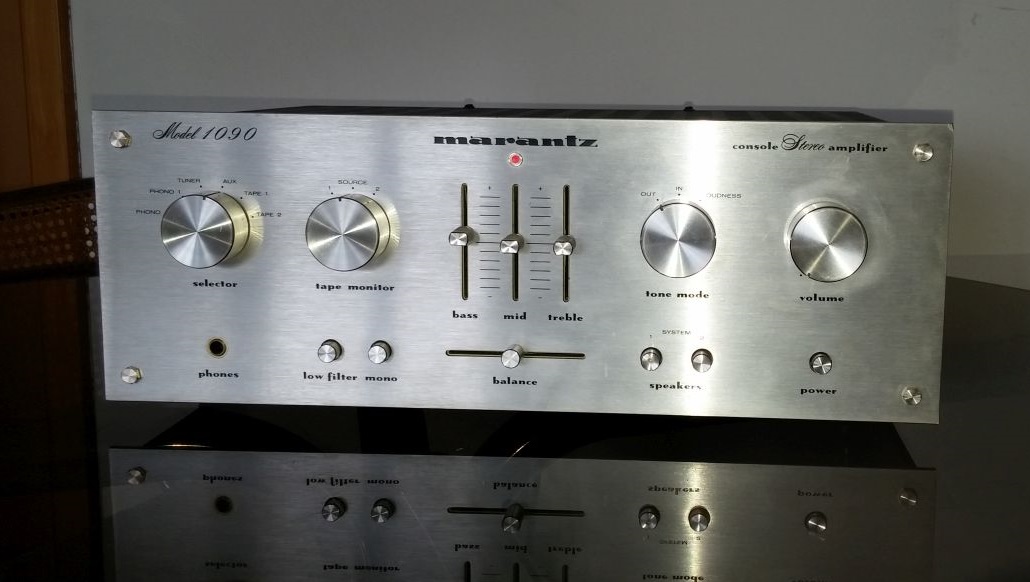

marantz 1090

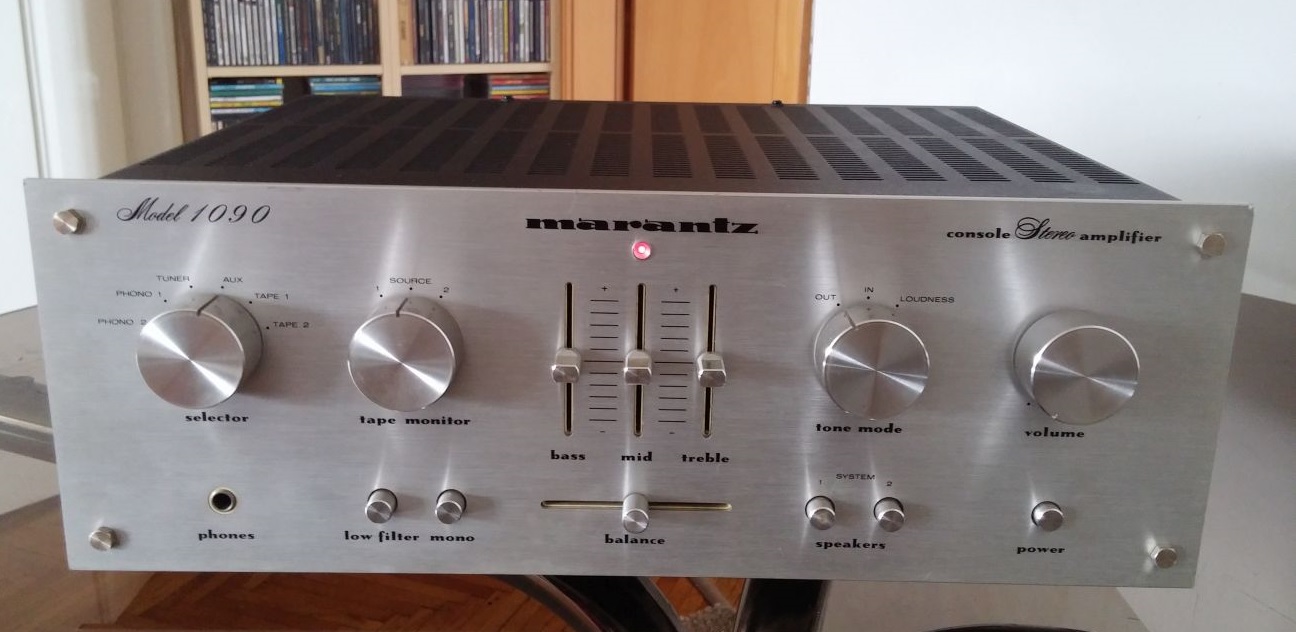

marantz 1090

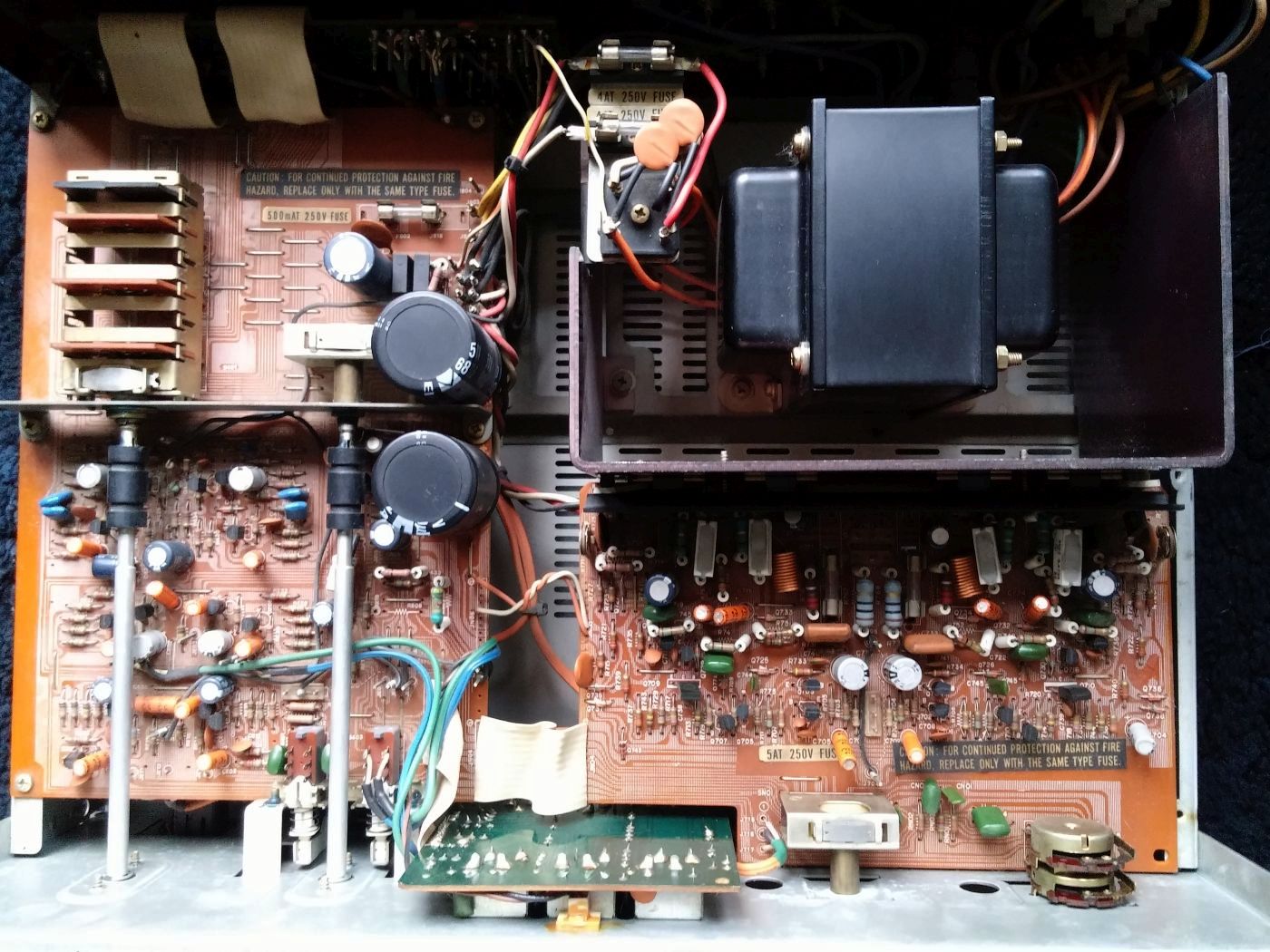

marantz 1090 inside

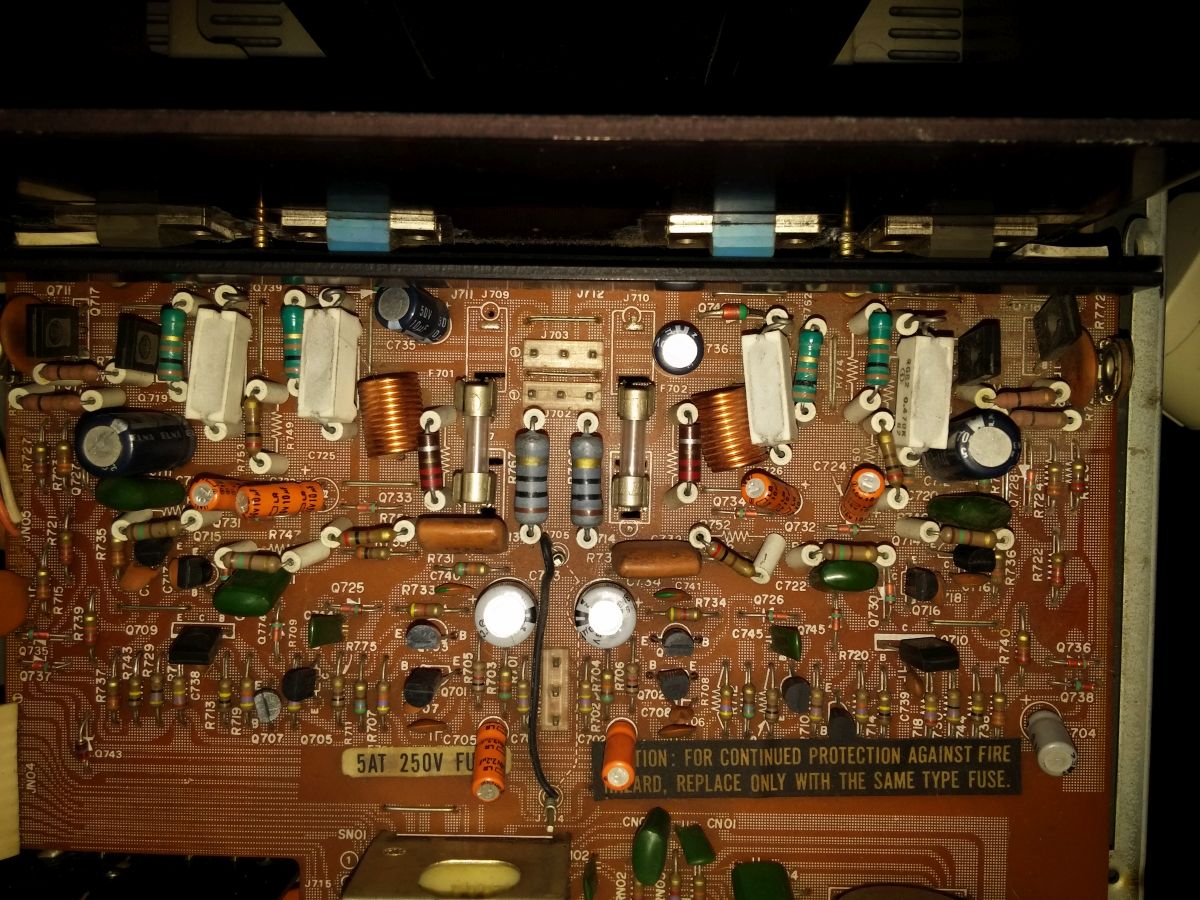

marantz 1090 output transistors

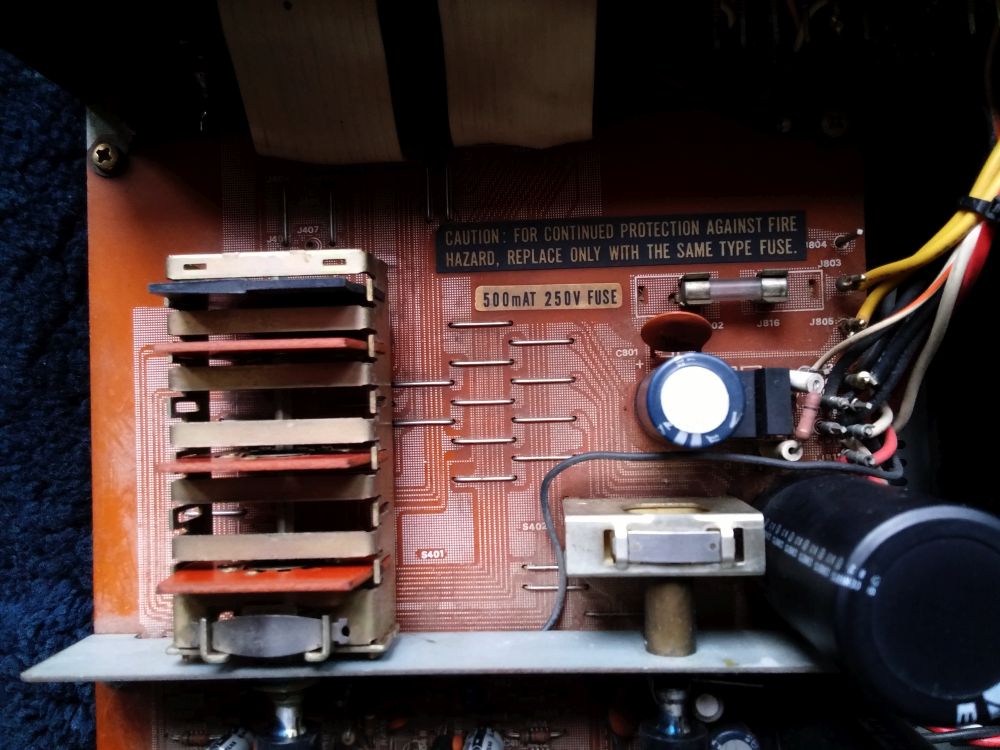

marantz 1090 switch contactors

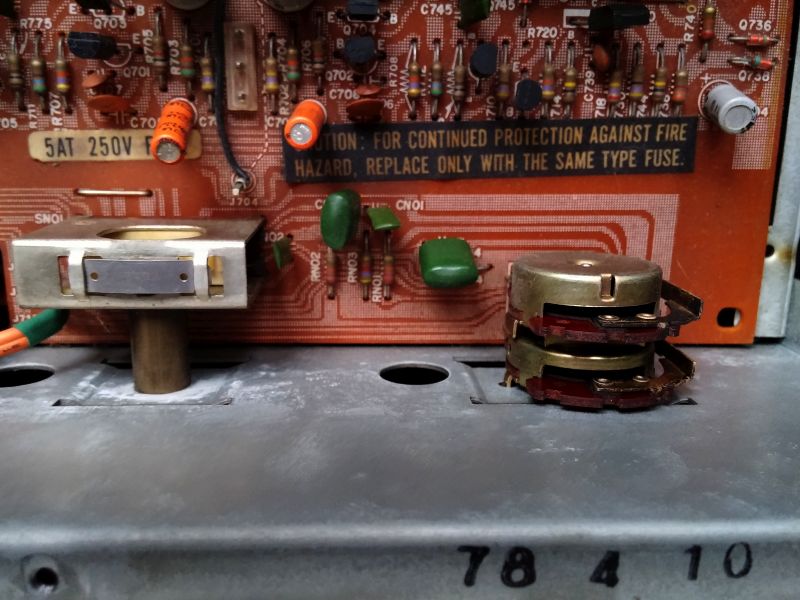

marantz 1090 swich and volume pot

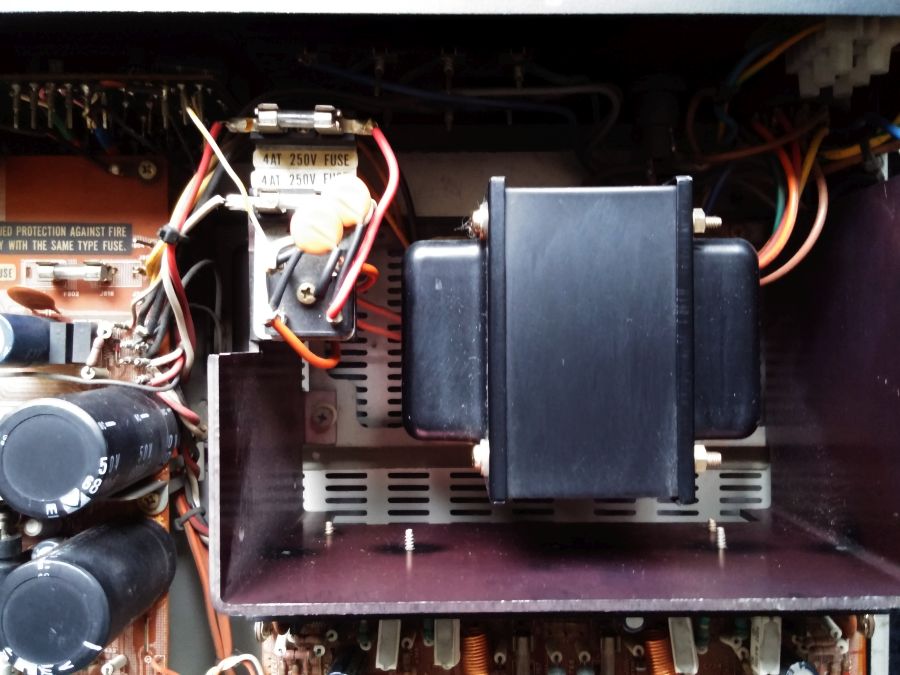

marantz 1090 trafo

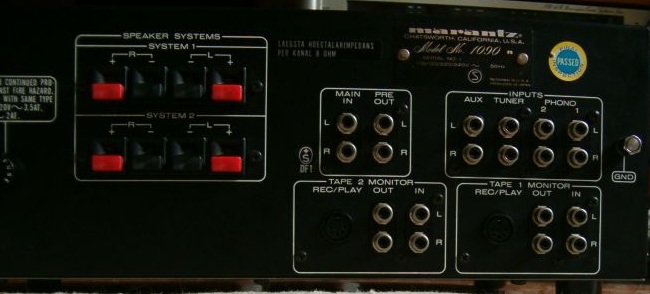

rear side of marantz 1090



specifitations:

POWER AMPLIFIER   PREAMPLIFIER
Power output: 2 X 45 Watts RMS at 8W, 20Hz - 20KHz Phono section
Intermodulation distortion: 0.1% Dynamic range: 96dB
Total harmonic distortion: 0.1% Equivalent Noise input: 1.5mV
Frequency response: 20Hz to 20 KHz  at +/- 2dB Frequency response: 20Hz to 60KHz at +/- 1.25dB
Power bandwidth: 20Hz - 20KHz IHF, both channels driven Sensitivity: 1.8mV
Basic Amplifier input sensitivity and impendance: 1.5V - 30 KW High level input sens.: 180mV
Damping factor: 45 into 8W Signal to noise: 88dB
GENERAL
Width/Height/Depth: 16-3/8"/5-3/4"/11-7/8"
Weight: 20.9 lbs



Power Transistor for marantz 1090 are: 2SD588 / 2SB618

The original transistors 2SD588 / 2SB618 has characteristics Vcbo=150V, Vebo=5V, Ic=7A, Pc=80W
